1. Power grid, PV, battery power supply priority can be set;
2. Built -in timer for switching operations in multiple modes;
3. Support RS232 WIFI multiple communication methods, check the system running status anytime, anywhere;
4. Extensible lithium battery design, 10-20kWh lithium battery optional, meet the daily electricity needs of users;
5. Mixed -net inverter, supports grid -to -network selling power;
6. Pure sine wave output, Friendly to electric equipment;

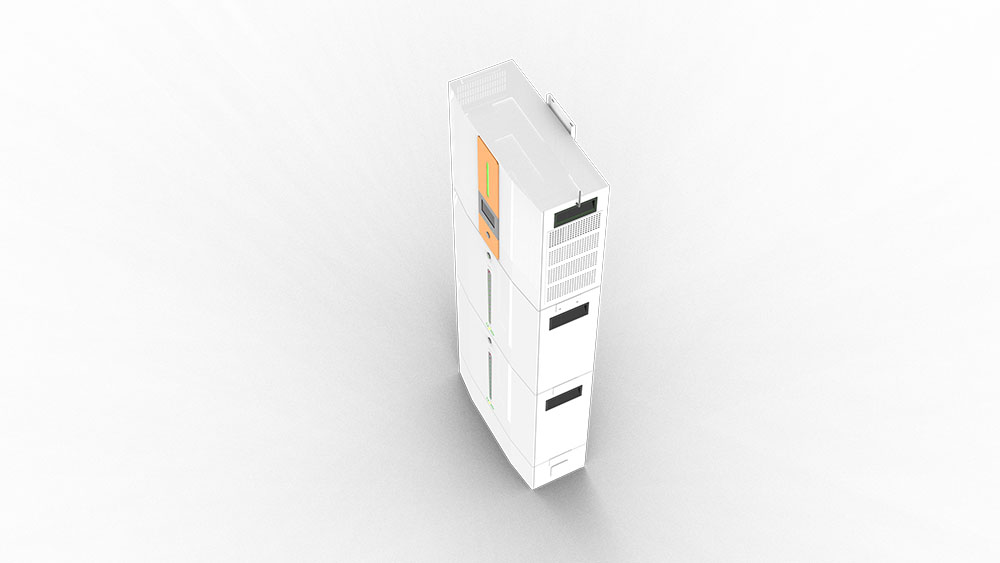

7. Stacking design, easy to install.
| Battery Model No. | TG 5510-EY1A1 | TG 5520-EY1A1 |
| Main Performance Parameters of Inverter | ||
| Maximum PV Input Power | 6500 W | |
| Rated Output Power | 5500 W | |
| Maximum Charging Power | 5000 W | |
| PV Input Parameter (DC) | ||
| Rated DC Voltage/Maximum DC Voltage | 360 VDC / 500 VDC | |
| Starting voltage/Initial Feed Voltage | 116 VDC / 150 VDC | |
| MPPT Voltage Range | 120 VDC ~ 450 VDC | |
| Number of MPPT Trackers / Maximum Input Current | 2 / 2 x 13 A | |
| Grid Connection/Output (AC) | ||
| Rated Output Voltage | 208 / 220 / 230 / 240 VAC | |
| Output Voltage Value | 184 – 264.5 VAC* | |
| Maximum Current Output | 23.9 A* | |
| Maximum Conversion Efficiency （DC/AC） | 96% | |
| European efficiency @ Vnominal | 95% | |
| AC Input Parameter | ||
| Automatic Starting Voltage | 120 – 140 VAC / 180 VAC | |
| Acceptable Voltage Range | 170 – 280 VAC | |
| Maximum AC Input Current | 40 A | |
| Battery Mode Output (AC) | ||
| Rated Output Voltage | 208 / 220 / 230 / 240 VAC | |
| Efficiency (DC – AC) | 93% | |
| Battery Specification | ||
| Nominal Voltage | 51.2 VDC | |
| Battery Capacity | 200Ah | 400Ah |
| Maximum Operating Current | 120 A | 200 A |
| Storage Energy Capacity | 10.24KWH | 20.48KWH |
| Charging Voltage (FC) | 56 V | |
| Discharge Cut-Off Voltage (FD) | 45V | |
| Protection | BMS, Disjunctor, Inverter | |
| Internal Impedance（AC） | < 20 m Ohm | |
| Battery Cycle Life | ≥4000次/80%DOD@25℃ | |
| System Parameter | ||
| Size (D*W*H) | 214*621*1205 mm | 214*621*1755 mm |
| Weight | 140kg | 235kg |
| Operating Temperature/Humidity Range | 0-55℃/0-80%RH | |
| Communication | WIFI & RS232 | |
